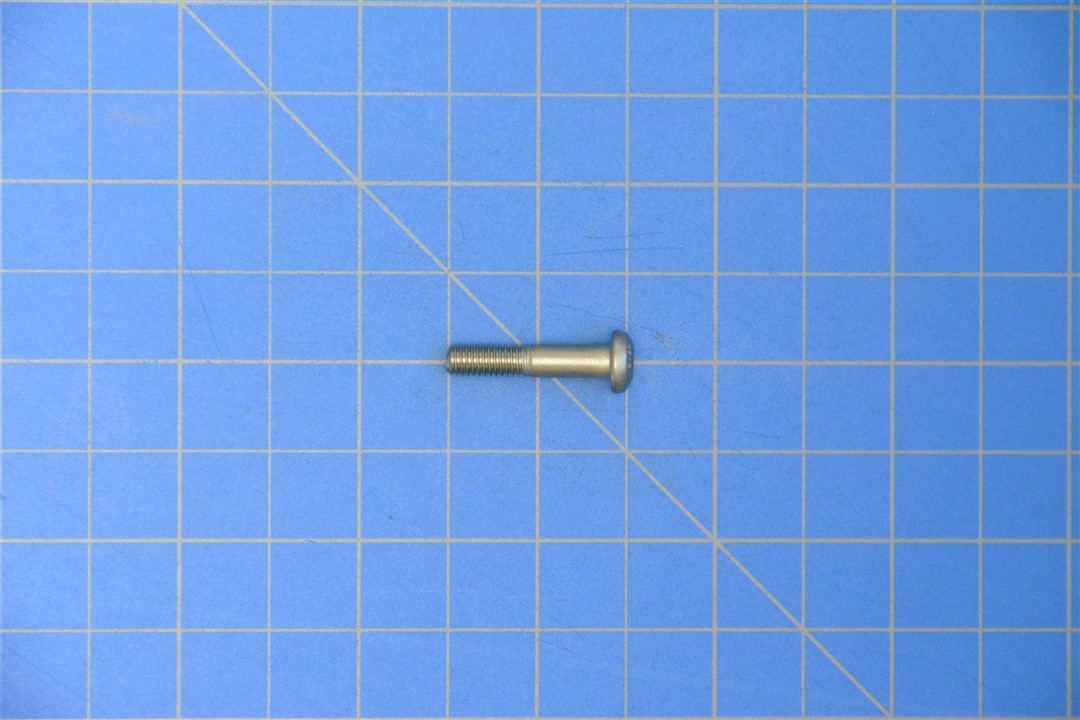

MS27039C1-14 – SCREW, MACHINE

Description

MS27039C1-14 – SCREW, MACHINE

Specifications

Head Style: Pan No. 2
Internal Drive Style: Cross Recess Type 1
Screw Surface Treatment: Passivate
Screw Material: Iron Alloy
Fastener Length: 0.891″ Min – 0.938″ Max
Head Diameter: 0.357″ Min – 0.373″ Max
Head Height: 0.122″ Min – 0.133″ Max
Tensile Strength Min: 125000 Pounds Per Square Inch
Thread Class: 3A
Thread Diameter: 0.190″
Thread Direction: Right-Hand
Thread Length: 0.438″ Min – 0.515″ Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unf

Part Number: MS27039C1-14
Unpunctuated: MS27039C114

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
