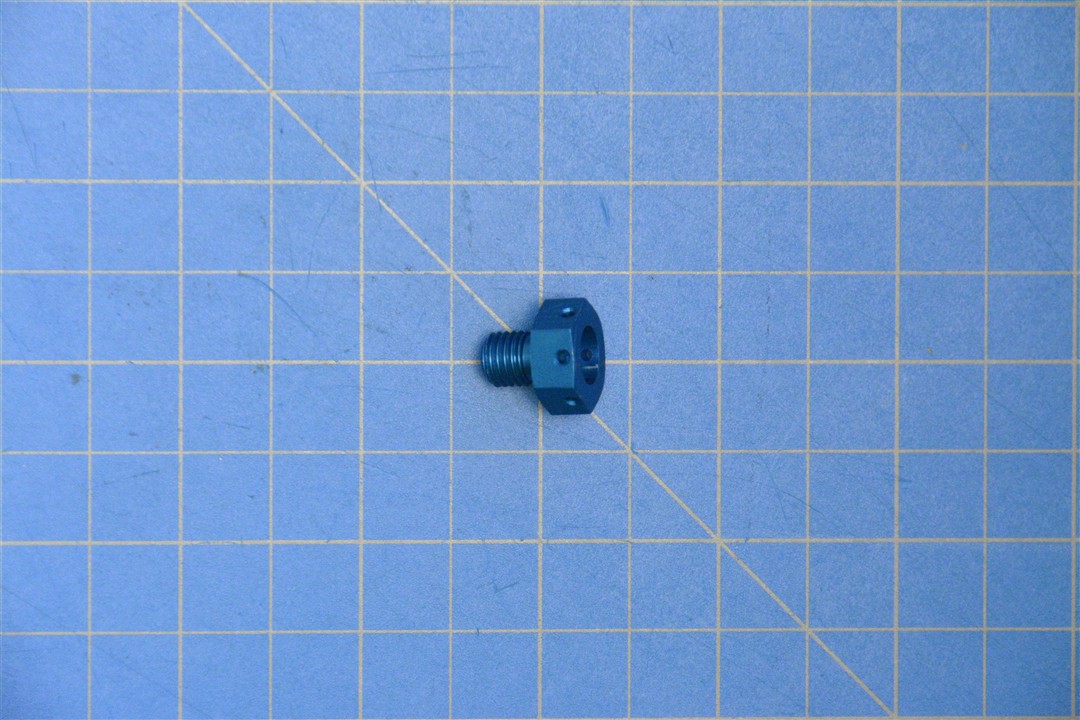

MS24391D2L – PLUG, MACHINE THREAD
$8.21
MS24391D2L, NEW SURPLUS, SOLD PER EACH
3 in stock
Description
MS24391D2L – PLUG, MACHINE THREAD
NEW SURPLUS, SOLD PER EACH
Specifications
Thread Class: 3A external
Thread Direction: Right-hand external
Thread Length: 0.328 in. nom external
Head Height: 0.250 in. nom
Overall Length: 0.594 in. nom
Connection Style: Plain
Body Core Diameter: 0.062 in. nom
Core Depth: 0.250 in. min – 0.266 in. max
Bleeder Hole Center to Threaded End Distance: 0.125 in. min – 0.188 in. max
Bleeder Hole Diameter: 0.063 in. nom
Nominal Thread Size: 0.312 in. external
Seat Angle: 45.0 degrees
Material: Aluminum alloy 2024 overall
Material Document and Classification: QQ-A-225/6 fed spec single material response overall
Surface Treatment: Anodize overall
Surface Treatment Document and Classification: MIL-A-8625, ty 2 mil spec single treatment response overall
Style Designator: Plug, machine W/bleeder holes
Thread Series Designator: Unf external
Alternate Part Numbers: 580531, MILF5509, MS24391D2L, AS5169D02L, SAE-AS4875
NSN Numbers associated with PN: 5365-00-726-4161
Part Number: MS24391D2L
Unpunctuated: MS24391D2L
The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
