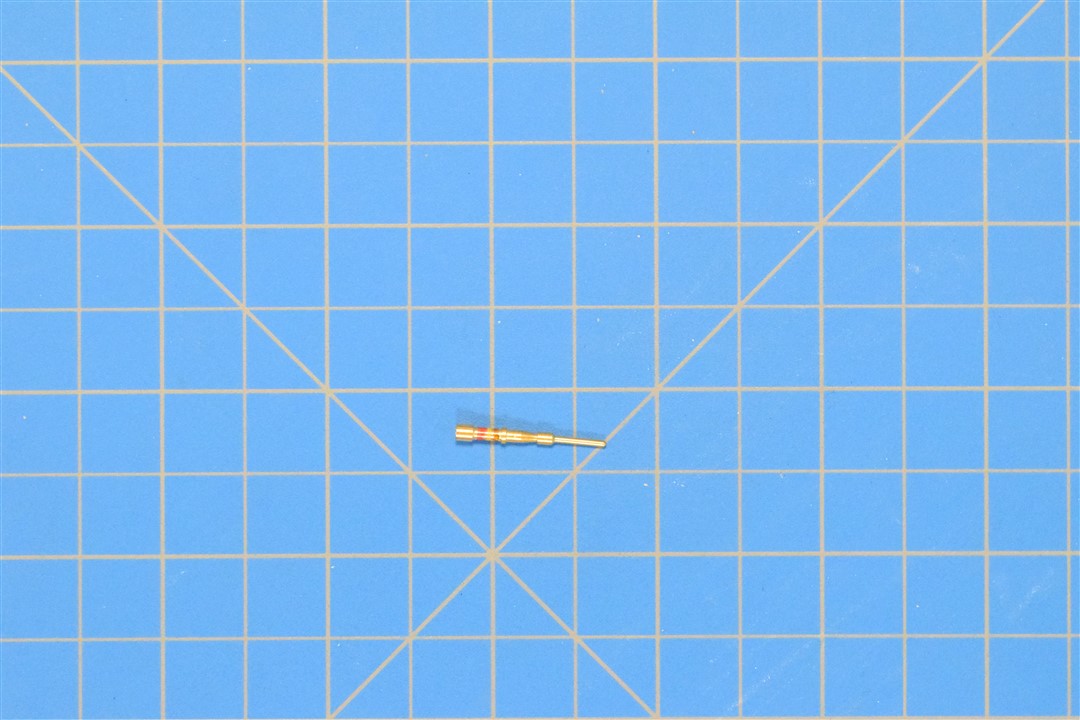

MS24254-20P – CONTACT, PIN

Description

MS24254-20P – CONTACT, PIN

Specifications

Special Features: Basic Item Identification Number Bin-241
Style/Shape: Pin Crimp Contact
Terminal Type & Quantity: 1 Crimp Axially At One End
Surface Treatment: Rhodium Contact
Material: Copper Alloy
Material: Copper Alloy
Precious Material: Rhodium
Cable Entrance Diameter: 0.085″ Min – 0.087″ Max
Overall Diameter: 0.104″ Min – 0.106″ Max
Overall Length: 0.915″ Nom
Pin Accommodation Length: 0.267″ Min – 0.298″ Max
Precious Material Location: Contact Rhodium
Precious Material Weight: 0.005 Rhodium Grains, Troy

Part Number: MS24254-20P
Unpunctuated: MS2425420P

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.

AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.

Part Numbers, Alternates & Reference Info: We ship the exact part number shown in the product title/description when in stock. Any NSNs or alternate part numbers listed are for traceability/reference only. If a compatible alternate is the only option available, we will contact you before shipping to confirm acceptance. Specifications are compiled from multiple sources and provided for convenience; always verify fit, tolerances, and requirements in the official spec sheets and applicable repair manuals/IPCs before purchase. If specific documentation (e.g., 8130 or company CoC/trace) is required, please contact us before ordering. We do not provide usage/support guidance, please refer to the manuals. Ordering the wrong part can extend lead times and result in aircraft downtime.
