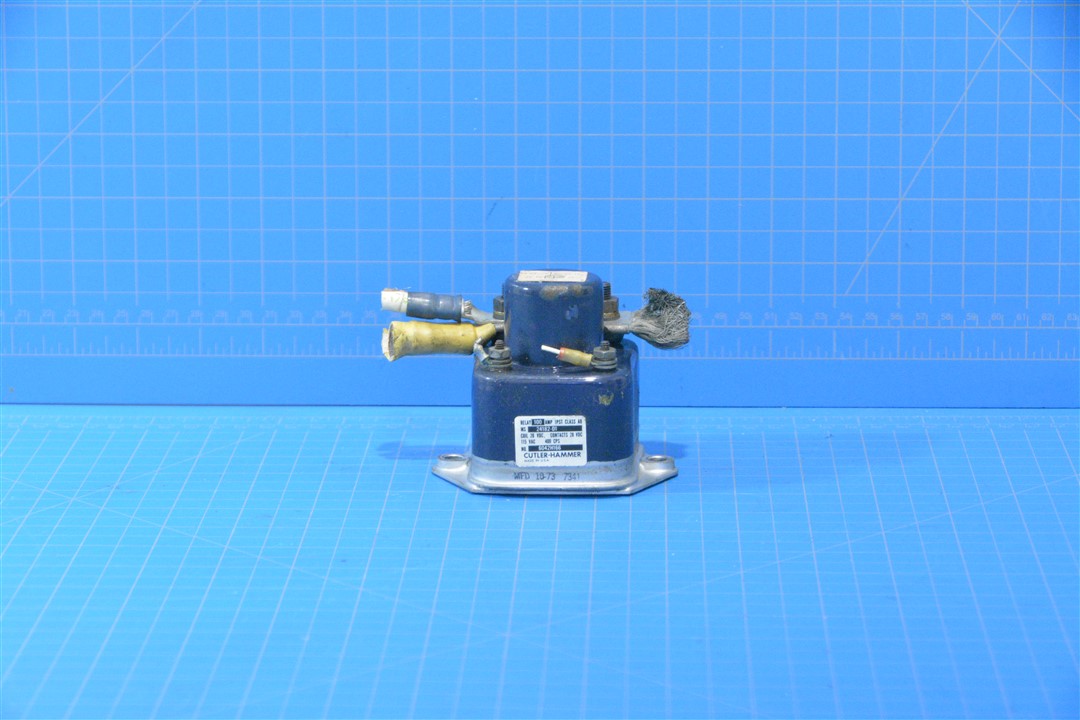

MS24182-D1 – RELAY, ELECTROMAGNETIC

Description

MS24182-D1 – RELAY, ELECTROMAGNETIC

Specifications

Protection: Hermetic
Case Material: Metal
Overall Height: 3.063″ Max
Overall Length: 3.640″ Max
Overall Width: 2.925″ Max
Coil Quantity: 1
Cubic Measure: 32.612 Cubic”
Main Contact Maximum Rated Voltage: 100.0 Amperes Ac Inductive Load
Main Contact Maximum Rated Voltage: 100.0 Amperes Ac Resistive Load And 100.0 Amperes Dc Resistive Load
Main Contact Maximum Rated Voltage: 50.0 Amperes Ac Lamp Load And 50.0 Amperes Dc Lamp Load
Main Contact Maximum Rated Voltage: 75.0 Amperes Ac Motor Load And 100.0 Amperes Dc Motor Load
Mounting Facility Pattern: In-Line Single Mounting Facility
Mounting Facility Type And Quantity: 2 Unthreaded Hole Single Mounting Facility
Operating Voltage Rating And Type At Specified Temp: 28.0 Volts Dc 25° Celsius Single Winding
Unthreaded Mounting Hole Diameter: 0.266″ Nom Single Mounting Facility
Winding Dc Resistance Rating: 78.0 Ohms Nom Single Winding
Terminal Type & Quantity: 4Ed All Functions- Stud
Standard: Military Standard

Part Number: MS24182-D1
Unpunctuated: MS24182D1
