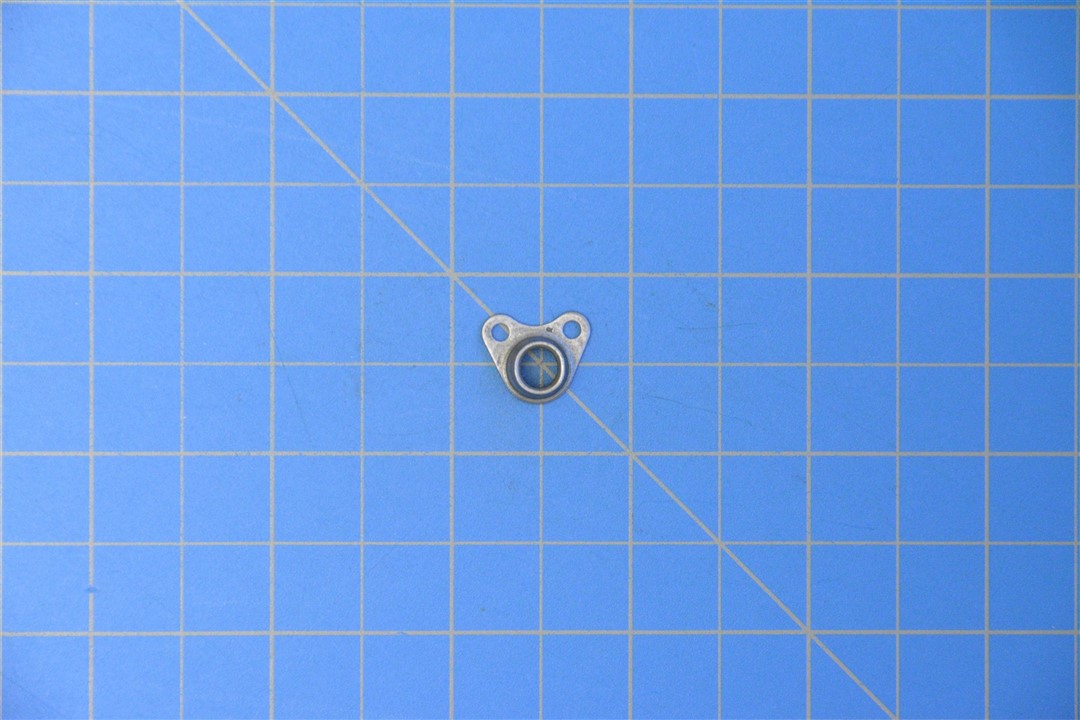

MS21073L4 – NUT PLATE, SELF-LOCKING

Description

MS21073L4 – NUT PLATE, SELF-LOCKING

Specifications

Mount Arrangement: 2 Holes
Nut Mounting: Straight Holes
Nut Style: Plate
Lubrication: Dry Film Lubricant
Surface Treatment: Cadmium
Material: Steel
Center To Mounting Distance: 0.276″ Min – 0.286″ Max
Counterbore Diameter: 0.254″ Min – Nut
Mounting Hole Diameter: 0.098″ Min – 0.103″ Max
Nut Counterbore Depth: 0.062″ Min – Nut
Nut Height: 0.281″ Max
Nut Length: 0.603″ Max
Thickness: 0.055″ Max
Locking Feature: Prevailing Torque All Metal Design
Temperature Rating: 450.0° F Nom

Part Number: MS21073L4
Unpunctuated: MS21073L4

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
