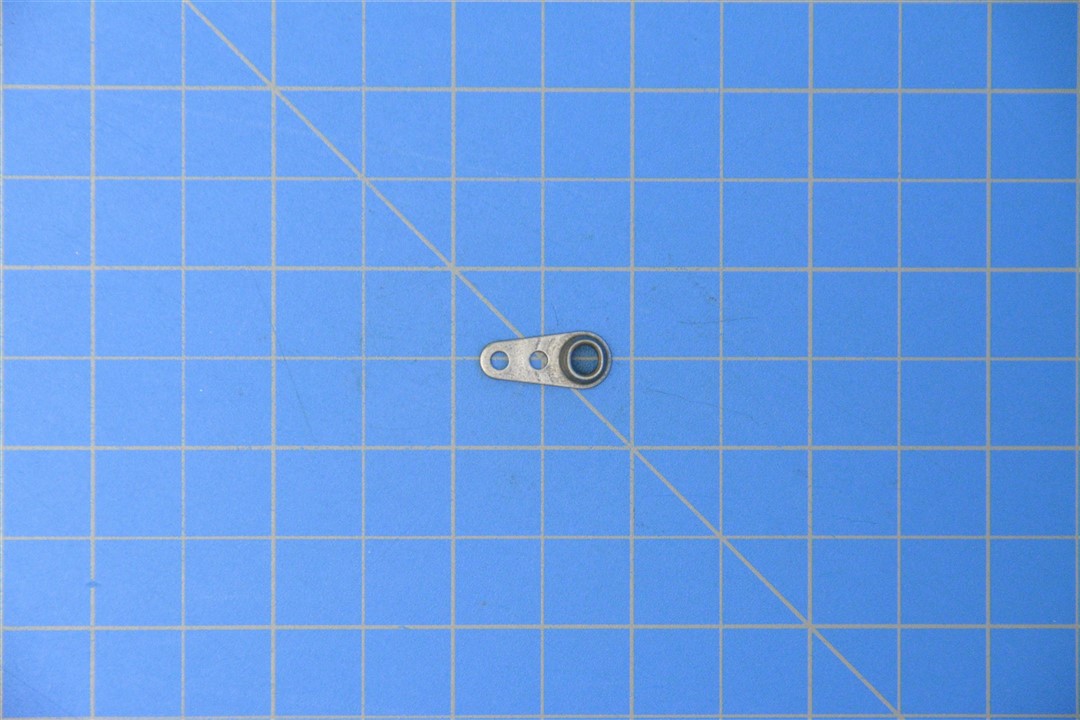

MS21071L3 – NUT PLATE, SELF-LOCKING

Description

MS21071L3 – NUT PLATE, SELF-LOCKING

Specifications

Mount Arrangement: 2 Holes
Nut Mounting: Straight Holes
Nut Style: Plate
Lubrication: Dry Film Lubricant
Surface Treatment: Cadmium
Material: Steel
Center To Center Distance Between Mounting Holes Along Length: 0.217″ Min – 0.221″ Max
Center To Mounting Distance: 0.245″ Min – 0.255″ Max
Mounting Hole Diameter: 0.098″ Min – 0.103″ Max
Nut Height: 0.250″ Max
Nut Length: 0.745″ Max
Thickness: 0.047″ Max
Width: 0.298″ Min – 0.328″ Max
Locking Feature: Prevailing Torque All Metal Design
Temperature Rating: 450.0° F Nom

Part Number: MS21071L3
Unpunctuated: MS21071L3

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
