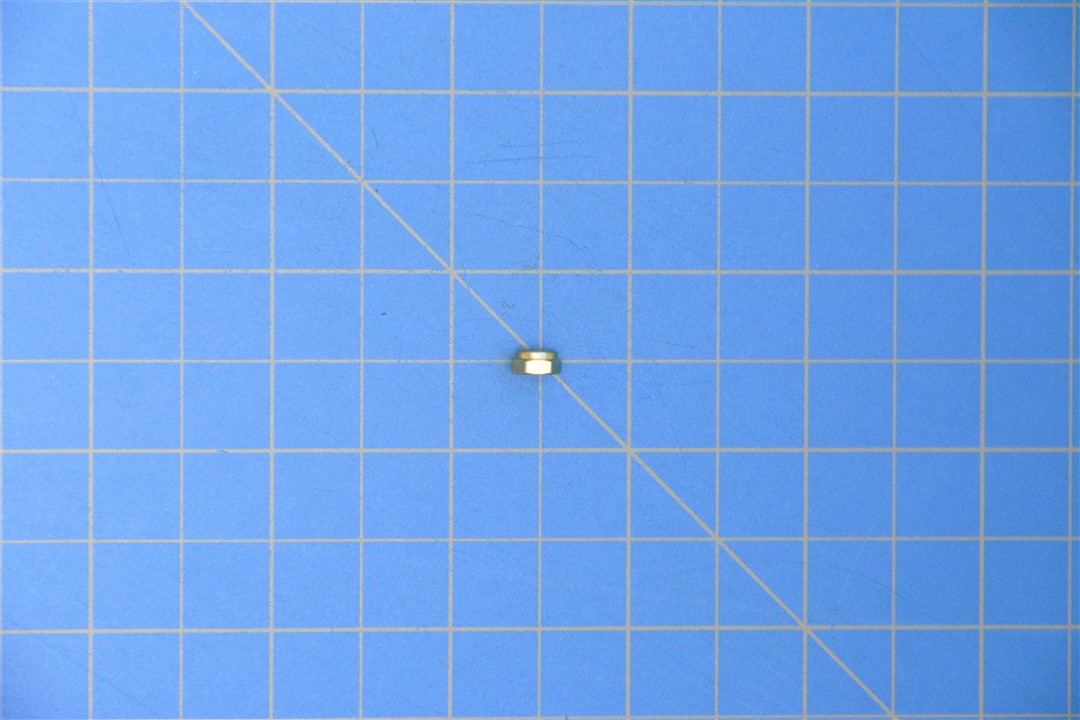

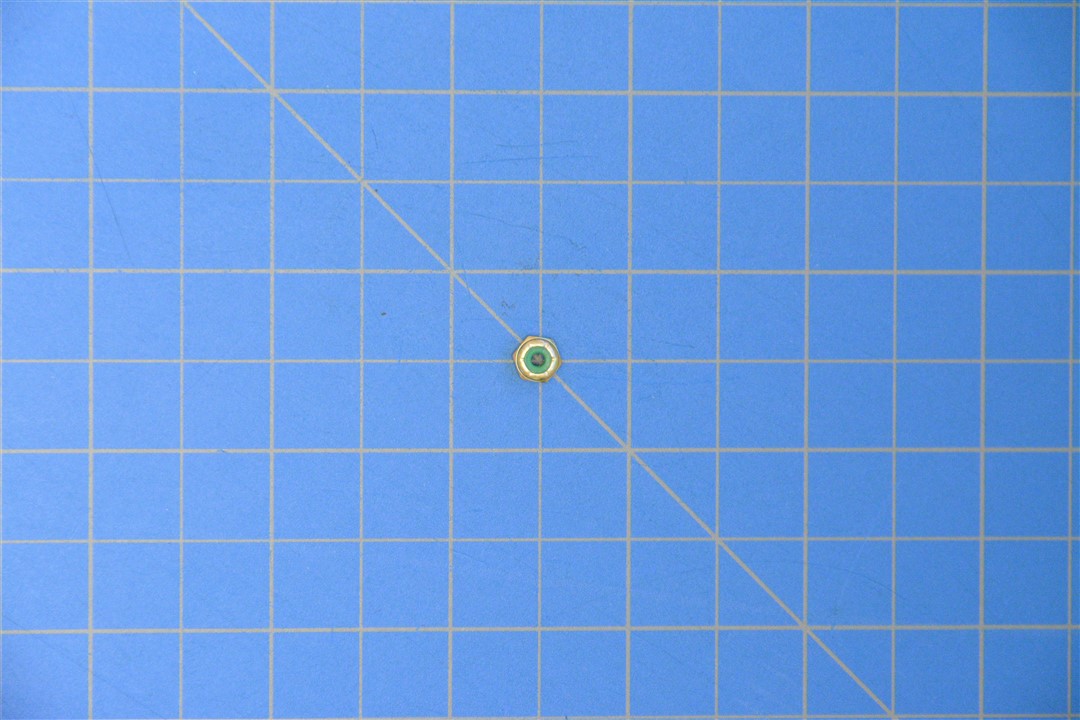

MS21044N04 – NUT, SELF-LOCKING, HEXAGON

Description

MS21044N04 – NUT, SELF-LOCKING, HEXAGON

Specifications

Nut Style: Hexagon
Bearing Surface Type: Chamfered Or Faced- Washer
Lubrication: Soluble Lubricant
Surface Treatment: Cadmium – Nut
Material: Plastic Polyamide Locking Insert
Material: Steel
Counterbore Diameter: 0.116″ Min – 0.156″ Max – Nut
Countersink Angle: 88.0° Nom – Nut
Nut Height: 0.133″ Min – 0.157″ Max
Width Across Flats: 0.243″ Min – 0.251″ Max
Thread Class: 3B
Thread Direction: Right-Hand
Thread Quantity Per Inch: 40
Thread Series: Unc
Thread Size: 0.112″
Locking Feature: Prevailing Torque With Nonmetallic Insert
Temperature Rating: 250.0° F Nom

Part Number: MS21044N04
Unpunctuated: MS21044N04

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
