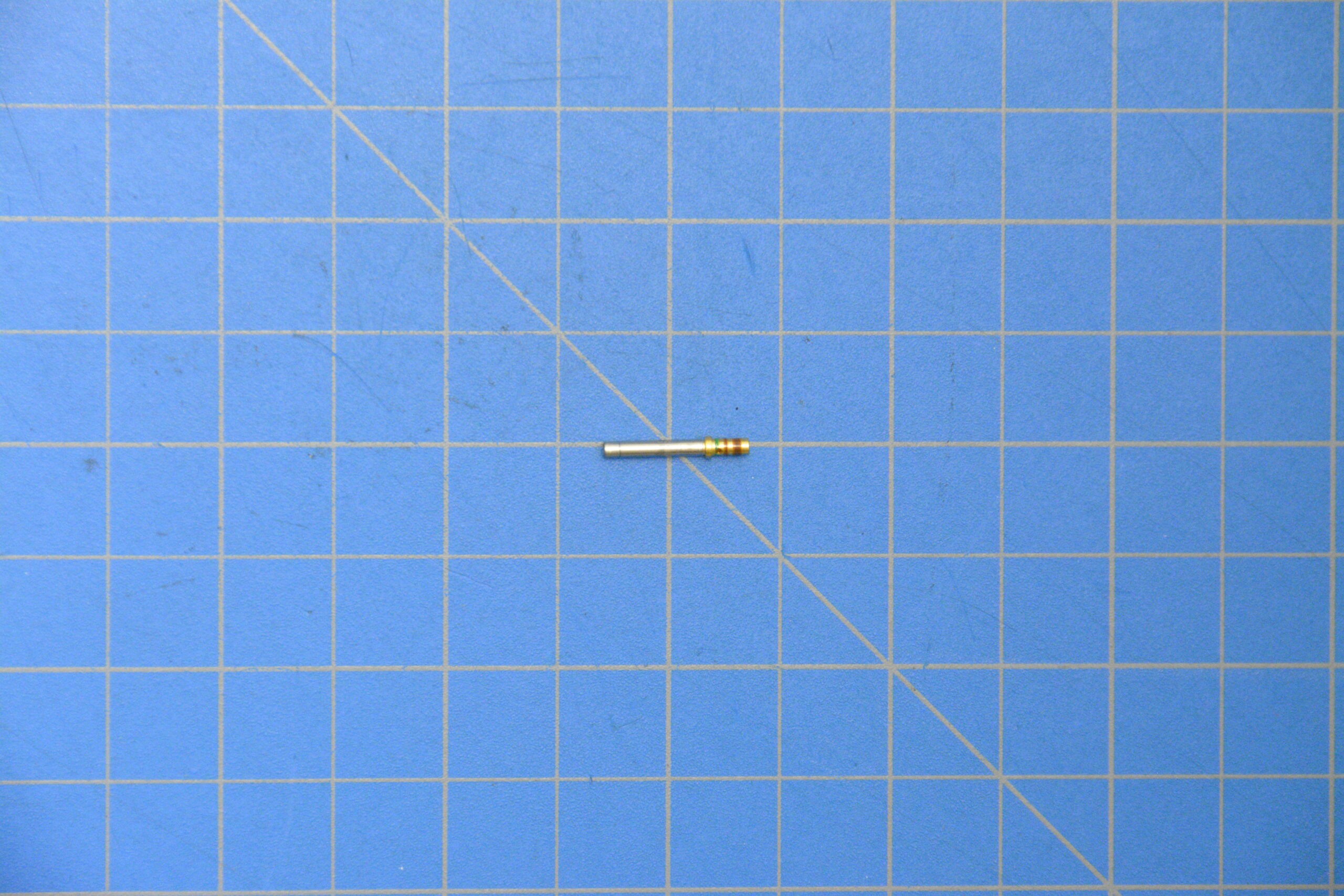

M39029-5-115 – CONTACT, ELECTRICAL

Description

M39029-5-115 – CONTACT, ELECTRICAL

NEW SURPLUS, SOLD PER EACH

Specifications

Overall Length: 0.675 in. max
Overall Diameter: 0.100 in. min – 0.103 in. max
Cable Entrance Diameter: 0.048 in. min – 0.050 in. max
End Item Identification: A4 bradley fighting vehicle
PIN Accommodation Length: 0.330 in. min – 0.370 in. max
PIN Accommodation Diameter: 0.042 in. min – 0.044 in. max
Mounting Method: Force fit
Crimping Tool Identifying Number: M22520/2-01
Special Features: Basic item identification number BIN-115
Material: Copper alloy body and contact
Precious Material and Location: External surfaces gold
Precious Material and Weight: 0.005 gold grains, troy
Precious Material: GOLD
Surface Treatment: Gold body and contact
Style Designator: Socket contact
Terminal Type and Quantity: 1 crimp and solder axially at one end

Alternate Part Numbers: M39029/5-115, 118-126-1200S-03, 118-126-2000S-03, BA4120-36LD, 10-497007-203, 10-497007-205, 10-597805-355, 497407-205, 5100-001-20, 100503, BIN-115, 224-512-9101, 5999PL0548175, 031-9174-004, 031-9174-019, 031-9174-031, 5-20-20, 3630-3015-01, 107130, M39029/5-20-20, M83723/34-B20, MIL-C-39029/5, MS39029-5-115, MS39029/5-20-20, 10139368, 808158-1, AS39029/5, SAE-AS39029/5, AS39029/5-115, MS39029/5-115, 8520-289, REC20W-1DJ5, 167-4052, 316-2020-088, 316-2020-088L

NSN Numbers associated with PN: 5999-00-172-8253, 5999-00-112-3493, 5999-00-403-6266, 5999-00-458-7326, 5999-00-757-6576, 5999-01-023-4981, 5999-01-083-3755, 5999-01-109-2345, 5999-01-112-8115, 5999-01-120-8864, 5999-01-221-5103

Part Number: M39029-5-115
Unpunctuated: M390295115

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.

AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.

Part Numbers, Alternates & Reference Info: We ship the exact part number shown in the product title/description when in stock. Any NSNs or alternate part numbers listed are for traceability/reference only. If a compatible alternate is the only option available, we will contact you before shipping to confirm acceptance. Specifications are compiled from multiple sources and provided for convenience; always verify fit, tolerances, and requirements in the official spec sheets and applicable repair manuals/IPCs before purchase. If specific documentation (e.g., 8130 or company CoC/trace) is required, please contact us before ordering. We do not provide usage/support guidance, please refer to the manuals. Ordering the wrong part can extend lead times and result in aircraft downtime.
