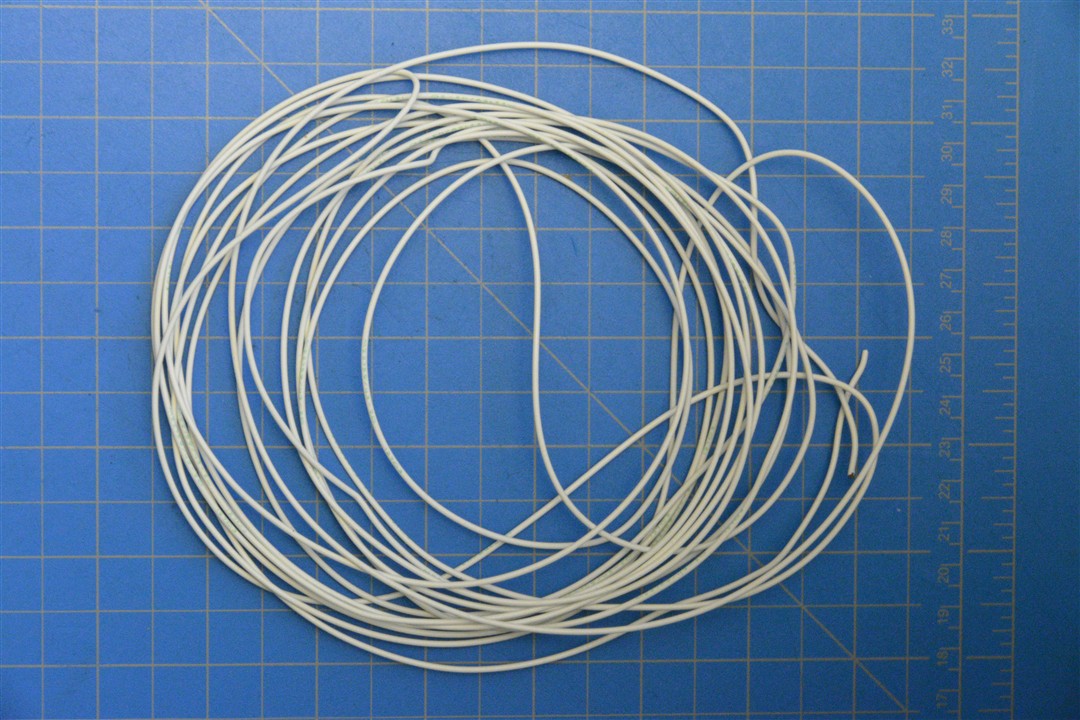

M22759-43-20-9 – WIRE, ELECTRICAL
$7.56
M22759-43-20-9, NEW SURPLUS, SOLD PER FOOT
69 in stock
Description
M22759-43-20-9 – WIRE, ELECTRICAL
NEW SURPLUS, SOLD PER FOOT
Specifications
Cross-Sectional Shape Style: Round
Temp Rating: 200.0 deg celsius
Cross Section Outside Diameter: 0.059 in. nom
End Item Identification: A4 bradley fighting vehicle; A3 bradley fighting vehicle
Strand Quantity per Conductor: 19 single conductor
Conductor Form: Stranded single conductor
Round Conductor Size: 20 awg single conductor
Strand AWG Size per Conductor: 32 single conductor
Voltage Rating: 600.0 max root mean square (rms) operating voltage single conductor
Color: White 1ST position cover single conductor
Material: Copper core conductor
Material: Plastic ethylene-tetrafluoroethylene
Precious Material and Location: Surface single conductor silver
Precious Material: Silver
Surface Treatment: Silver core conductor single conductor
Alternate Part Numbers: M22759/43-20-9, MIL-W-22759/43, AS22759/43, M22759/43-20, SAE-AS22759/43
NSN Numbers associated with PN: 6145-01-195-3394
Part Number: M22759-43-20-9
Unpunctuated: M2275943209
The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.
Part Numbers, Alternates & Reference Info: We ship the exact part number shown in the product title/description when in stock. Any NSNs or alternate part numbers listed are for traceability/reference only. If a compatible alternate is the only option available, we will contact you before shipping to confirm acceptance. Specifications are compiled from multiple sources and provided for convenience; always verify fit, tolerances, and requirements in the official spec sheets and applicable repair manuals/IPCs before purchase. If specific documentation (e.g., 8130 or company CoC/trace) is required, please contact us before ordering. We do not provide usage/support guidance, please refer to the manuals. Ordering the wrong part can extend lead times and result in aircraft downtime.
Specifications
No specifications have been added for this product yet.
Please review the product title, part number, condition, photos, and description before ordering.
Alternate Parts
No alternate parts have been added for this product yet.
Verification Required: Alternate, equivalent, superseded, and manufacturer-reference parts must be verified for part number accuracy, aircraft configuration, documentation requirements, and suitability before purchase or use.
Additional Information
Before ordering, please review the product title, part number, condition, quantity, unit of measure, photos, documentation notes, and any listed alternate part numbers.
Condition & Documentation
Only the condition and documentation shown or stated on this product listing should be expected with the order. Company CoC, Manufacturer CoC, trace, FAA Form 8130-3, tags, or other paperwork should only be expected when clearly listed.
Part Number Verification
Aircraft parts and hardware can look similar while differing by dash number, suffix, material, finish, dimensions, certification, or application. Customers are responsible for confirming the correct part number and suitability before purchase or use.
Shipping & Ordering
Orders are generally processed within 24 business hours when possible. Orders with customer-provided shipping accounts, tax-exempt requests, missing information, special handling, or documentation questions may require review before shipment.
