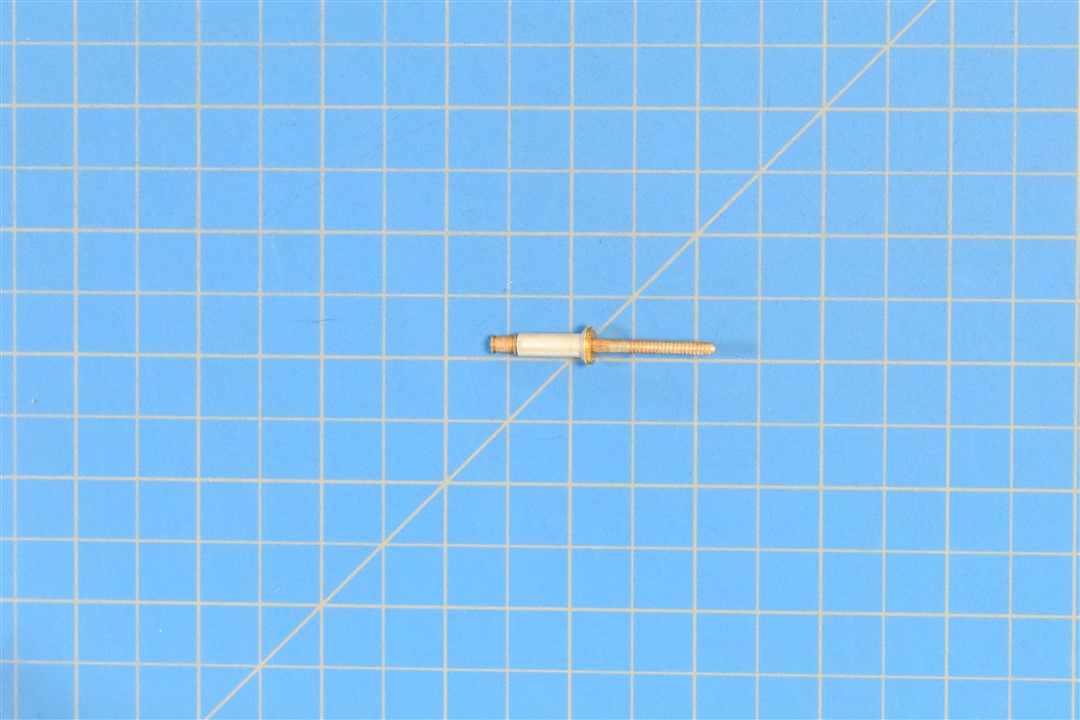

CR3212-6-07 – RIVET, BLIND

Description

CR3212-6-07 – RIVET, BLIND

Specifications

Head Style: Flush (Flat) Countersunk (Included Angle – Less Than 135° W Or W/O Chamfer)
Shank Style: Self-Plugging Mechanically Locked – Stem
Special Features: Ns Letters After The Material Code “B” Indicate No Preference To Lock Type (May Be Visible Or Internal). Rivets With No Letter Code (Indicating Visible Lock Type) And Rivets With The Letter “H” After The Material Code (Indicating Internal Lock Type) Are Both Acceptable For This Item Of Supply.
Surface Treatment: Cadmium And Chromate – Stem
Surface Treatment: Chromate – Sleeve
Material: Aluminum Alloy
Material: Steel
Countersink Angle: 99.0° Min – 101.0° Max
Expansion Device: Serrated – Stem
Fastener Length: 0.565″ Min – 0.585″ Max
Grip Length: 0.376″ Min – 0.437″ Max
Head Major Diameter: 0.357″ Max
Shank Diameter: 0.188″ Min – 0.192″ Max

Part Number: CR3212-6-07
Unpunctuated: CR3212607

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
