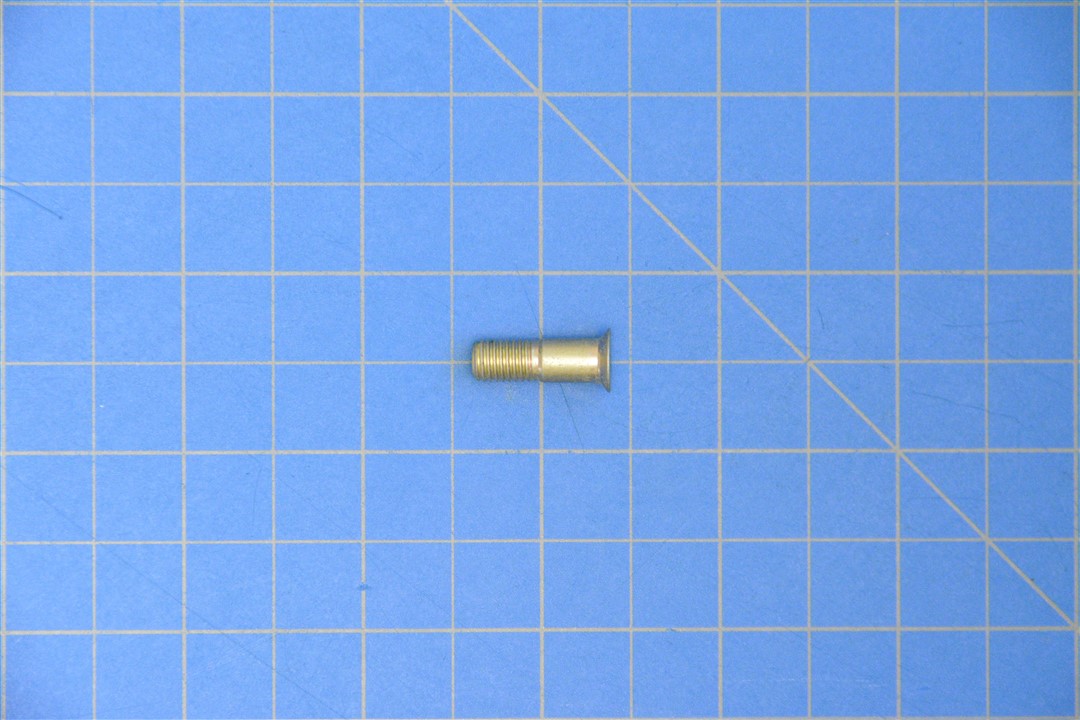

BACB30FN8A6 – PIN-RIVET

Description

BACB30FN8A6 – PIN-RIVET

Specifications

Head Style: Flush Countersunk
Shank Style: Threaded, Straight
Surface Treatment: Cadmium
Material: Iron Alloy
Countersink Angle: 100.0° Nom
Fastener Length: 0.760″ Min – 0.780″ Max
Grip Length: 0.380″ Max
Head Major Diameter: 0.3948″ Max
Shank Diameter: 0.2485″ Min – 0.2495″ Max
Shear Strength: 95000 Single Pounds Per Square Inch
Width Between Flats: 0.0947″ Min – 0.0967″ Max
Thread Class: 3A
Thread Direction: Right-Hand
Thread Quantity Per Inch: 28
Thread Series Designator: Unjf
Thread Size: 0.250″
Manufacturer: Boeing

Part Number: BACB30FN8A6
Unpunctuated: BACB30FN8A6

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
