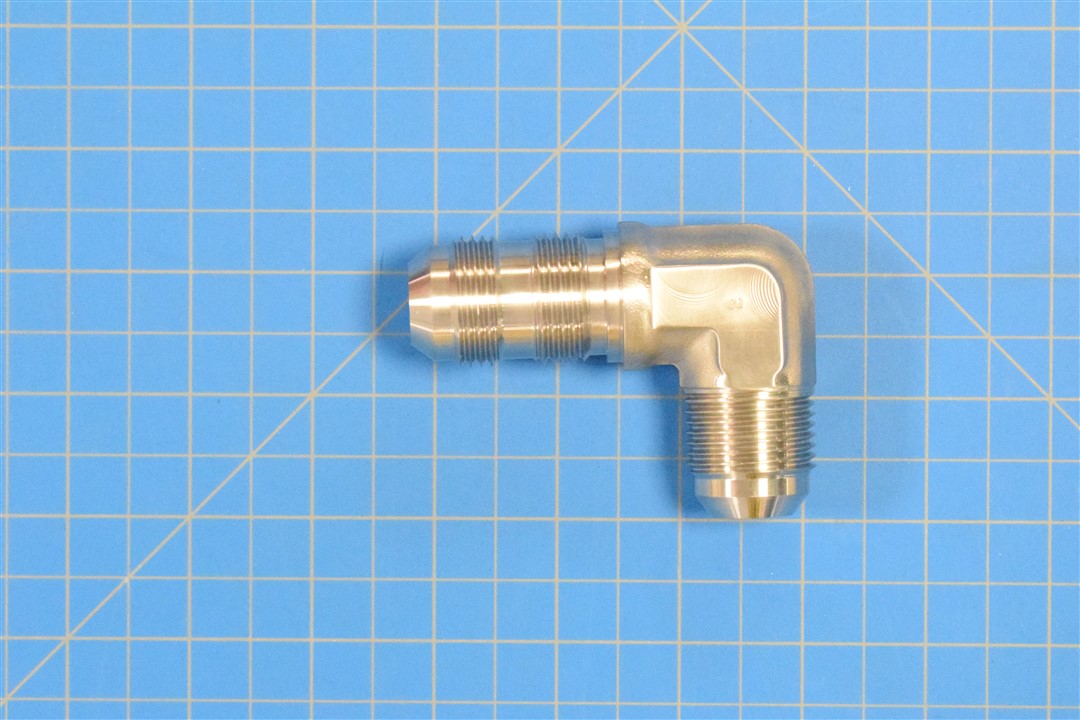

AN833-12J – ELBOW, TUBE

Description

AN833-12J – ELBOW, TUBE

Specifications

Angle Of Flow: 90.0° Rees
Connection Style: Flared (Tube) All Ends
Connection Type: Threaded External Tube All Ends
Surface Treatment: Passivate
Material: Steel
Leg Length: 1.756″ Nom Second End
Leg Length: 2.656″ Nom First End
Seat Angle: 37.0° All Ends
Tube Outer Diameter Accomodated: 0.750″ All Ends
Thread Class: 3A All Ends
Thread Class: 3A First End Bulkhead
Thread Quantity Per Inch: 12 All Ends
Thread Quantity Per Inch: 12 First End Bulkhead
Thread Series Designator: Unj All Ends
Thread Series Designator: Unj First End Bulkhead
Thread Size: 1.062″ All Ends
Thread Size: 1.062″ First End Bulkhead

Part Number: AN833-12J
Unpunctuated: AN83312J

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
