AN6CH6 – BOLT, MACHINE

Description

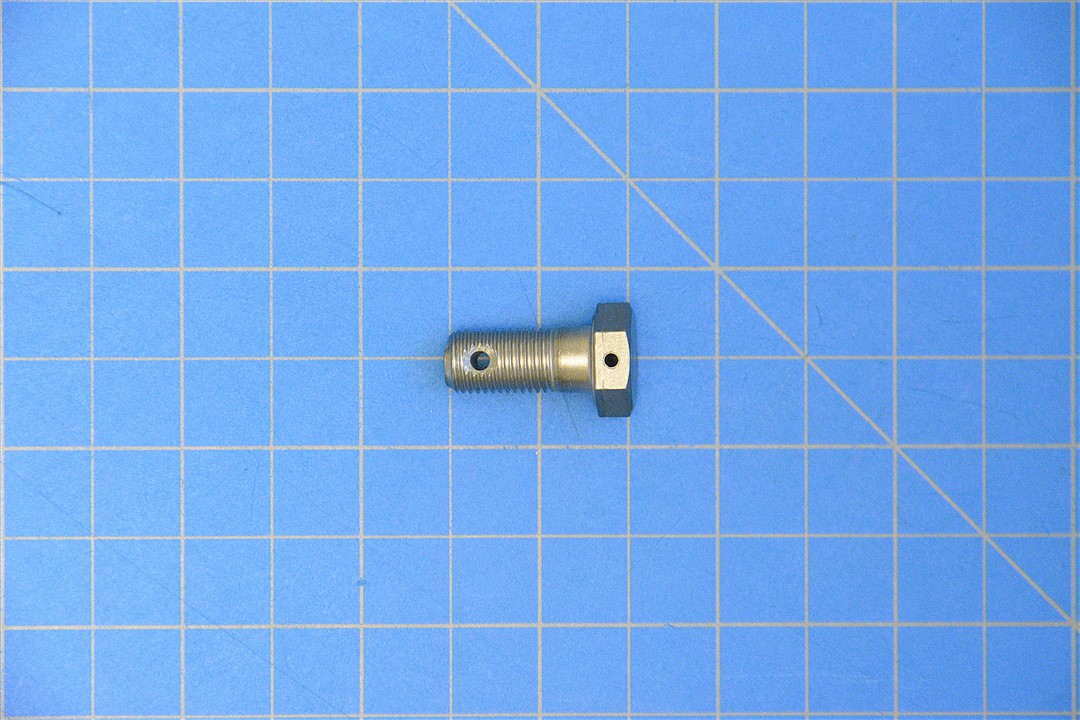

AN6CH6 – BOLT, MACHINE

Specifications

Head Style: Hexagon
Hole Configuration Style: Hexagon Flats
Hole Type: Drilled
Surface Treatment: Passivate
Material: Steel
Fastener Length: 0.828″ Nom
Grip Length: 0.188″ Nom
Head Height: 0.203″ Min – 0.235″ Max
Head Surface To Shank Hole Center: 0.626″ Nom – First Hole
Hole Diameter: 0.070″ Nom
Shank Unthreaded Hole Diameter: 0.106″ Nom – First Hole
Tensile Strength Min: 125000 Pounds Per Square Inch
Width Between Flats: 0.553″ Min – 0.565″ Max
Thread Class: 3A
Thread Diameter: 0.375″
Thread Direction: Right-Hand
Thread Length: 0.640″ Min
Thread Quantity Per Inch: 24
Thread Series Designator: Unf
Features Provided: Finished Head
Hole Quantity: 1

Part Number: AN6CH6
Unpunctuated: AN6CH6
