AN525-416R8 – SCREW, MACHINE

Description

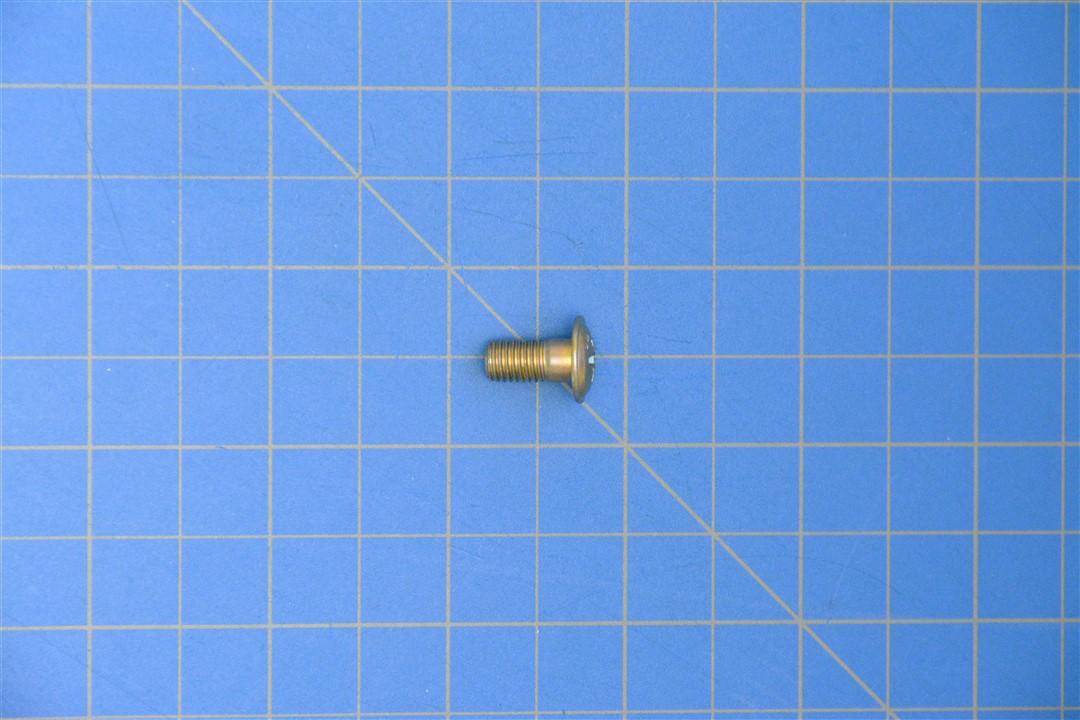

AN525-416R8 – SCREW, MACHINE

Specifications

Head Style: Round Extended – Washer
Internal Drive Style: Cross Recess Type 1
Screw Surface Treatment: Cadmium Or Zinc
Screw Material: Steel
Fastener Length: 0.469″ Min – 0.531″ Max
Head Diameter: 0.427″ Min – 0.447″ Max
Head Height: 0.096″ Min – 0.106″ Max
Tensile Strength Min: 125000 Pounds Per Square Inch
Washer Diameter Extended: 0.490″ Min – 0.510″ Max
Washer Thickness Extended: 0.028″ Min – 0.033″ Max
Thread Class: 3A
Thread Diameter: 0.250″
Thread Direction: Right-Hand
Thread Length: 0.257″ Min – 0.422″ Max
Thread Quantity Per Inch: 28
Thread Series Designator: Unf

Part Number: AN525-416R8
Unpunctuated: AN525416R8
