AN4CH5A – BOLT, MACHINE

Description

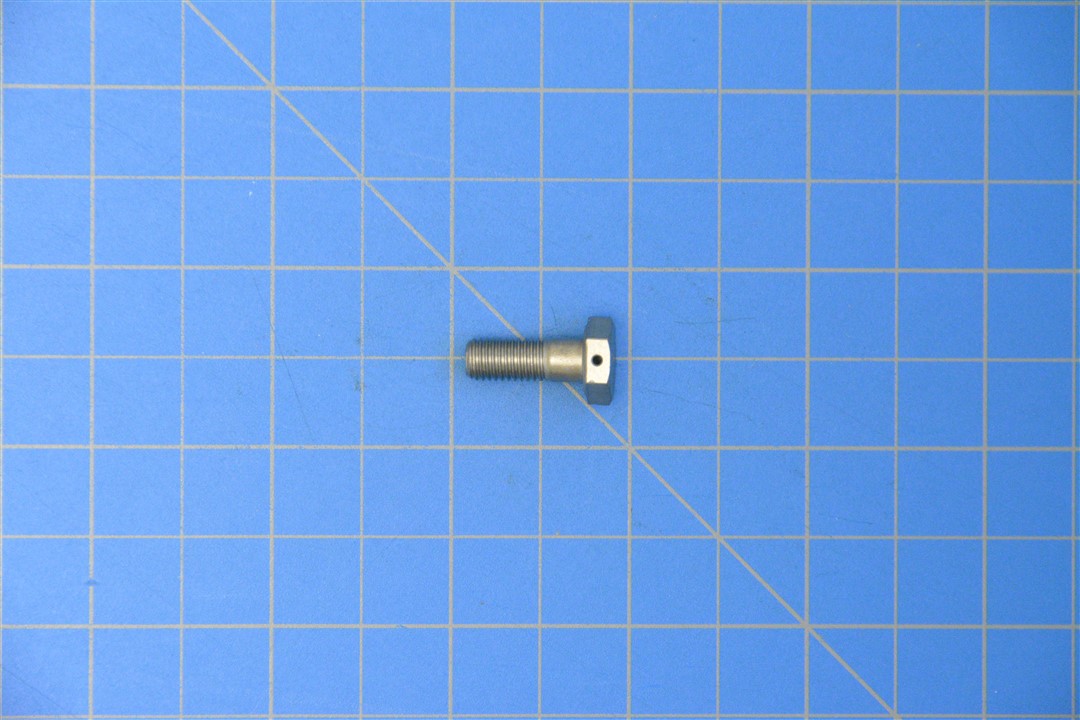

AN4CH5A – BOLT, MACHINE

Specifications

Head Style: Hexagon
Hole Configuration Style: Hexagon Flats
Hole Type: Drilled
Surface Treatment: Passivate
Material: Steel
Fastener Length: 0.656″ Nom
Grip Length: 0.188″ Nom
Head Height: 0.140″ Min – 0.172″ Max
Hole Diameter: 0.046″ Nom
Tensile Strength Min: 125000 Pounds Per Square Inch
Width Between Flats: 0.428″ Min – 0.440″ Max
Thread Class: 3A
Thread Diameter: 0.250″
Thread Direction: Right-Hand
Thread Length: 0.468″ Min
Thread Quantity Per Inch: 28
Thread Series Designator: Unf
Features Provided: Finished Head
Hole Quantity: 1

Part Number: AN4CH5A
Unpunctuated: AN4CH5A
