AN3H12A – BOLT, MACHINE

Description

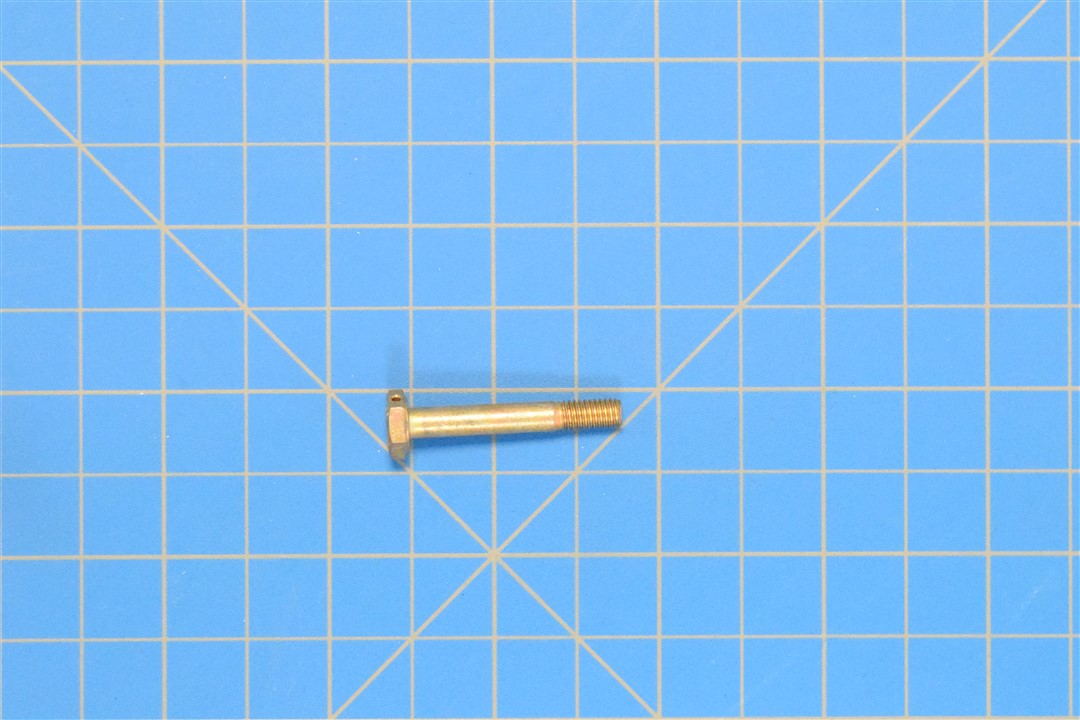

AN3H12A – BOLT, MACHINE

Specifications

Head Style: Hexagon
Hole Configuration Style: Hexagon Flats
Hole Type: Drilled
Material: Steel
Fastener Length: 1.266″ Min – 1.312″ Max
Grip Length: 0.859″ Min – 0.891″ Max
Head Height: 0.109″ Min – 0.141″ Max
Hole Diameter: 0.046″ Nom
Tensile Strength Min: 125000 Pounds Per Square Inch
Width Between Flats: 0.365″ Min – 0.377″ Max
Thread Class: 3A
Thread Diameter: 0.190″
Thread Direction: Right-Hand
Thread Length: 0.375″ Min – 0.453″ Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unf

Part Number: AN3H12A
Unpunctuated: AN3H12A
