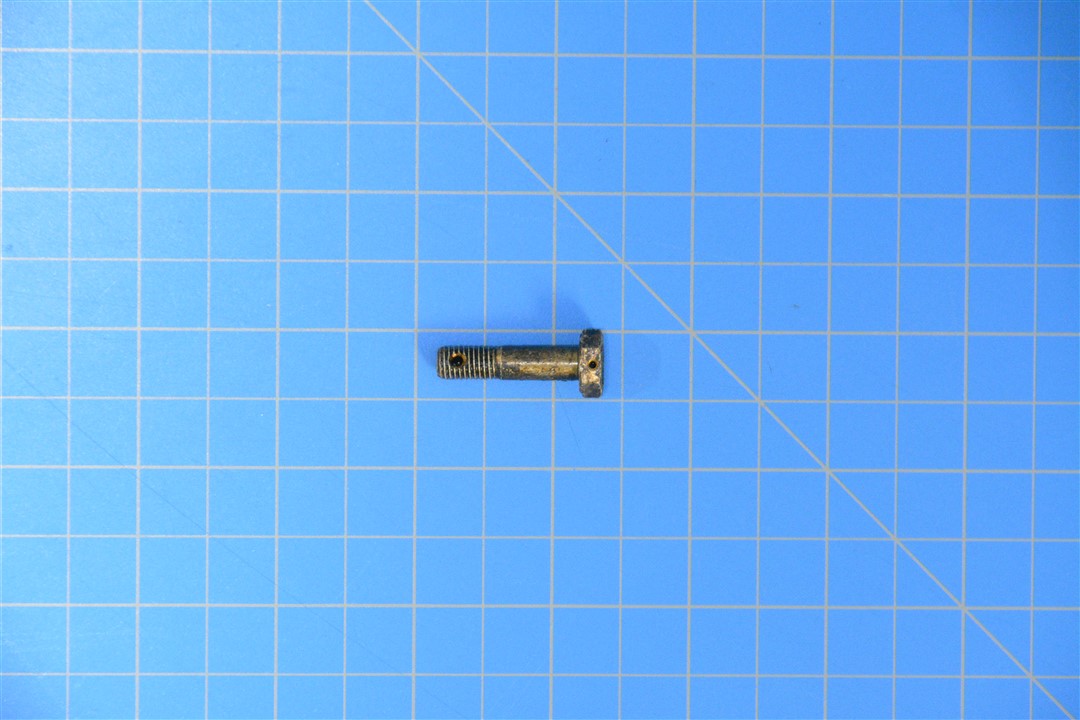

AN174H10 – BOLT, CLOSE TOLERANCE

Description

AN174H10 – BOLT, CLOSE TOLERANCE

Specifications

Head Style: Hexagon
Hole Configuration Style: Hexagon Flats
Hole Type: Drilled
Surface Finish: 63.0 Microinches – Bearing Surface Of Head
Surface Finish: 63.0 Microinches – Grip
Surface Treatment: Cadmium And Chromate
Material: Steel
Fastener Length: 1.015″ Min – 1.062″ Max
Grip Diameter: 0.2487″ Min – 0.2492″ Max
Grip Length: 0.546″ Min – 0.578″ Max
Head Height: 0.140″ Min – 0.172″ Max
Head Surface To Shank Hole Center: 0.874″ Nom – First Hole
Hole Diameter: 0.046″ Nom
Shank Unthreaded Hole Diameter: 0.076″ Nom – First Hole
Tensile Strength Min: 125000 Pounds Per Square Inch
Width Between Flats: 0.428″ Min – 0.440″ Max
Thread Class: 3A
Thread Diameter: 0.250″
Thread Direction: Right-Hand
Thread Length: 0.437″ Min – 0.695″ Max
Thread Quantity Per Inch: 28
Thread Series Designator: Unf
Hole Quantity: 1
Additional Information: Interchangable with NSN: 5306-00-151-1943

Part Number: AN174H10
Unpunctuated: AN174H10

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
