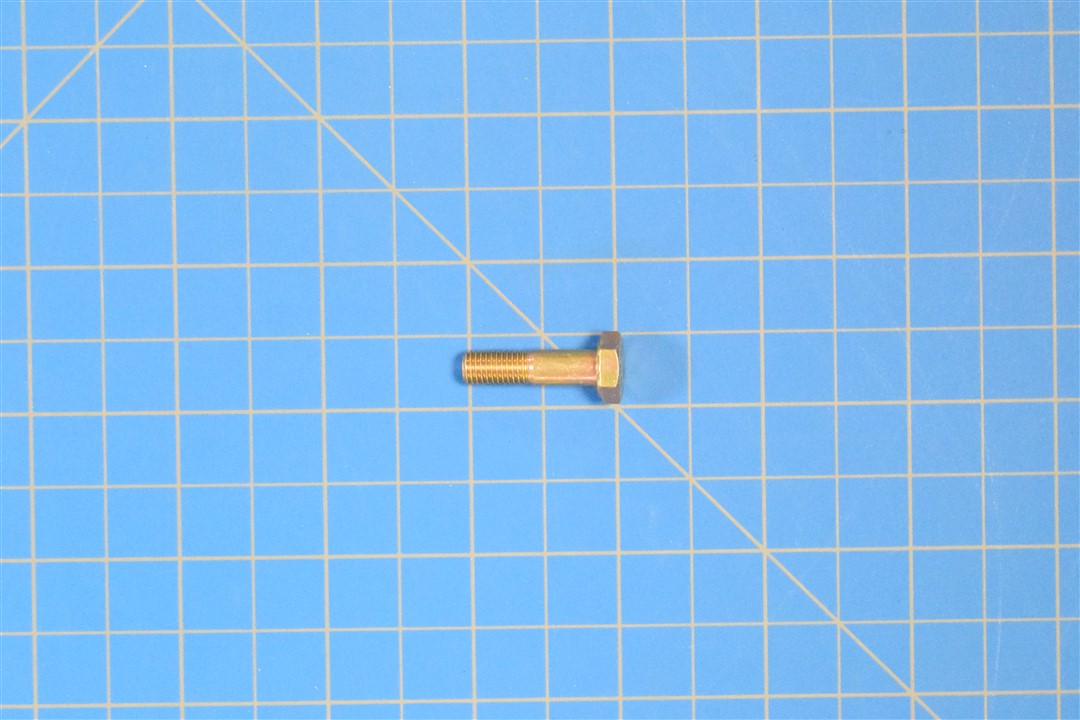

AN174-7A – BOLT, CLOSE TOLERANCE

Description

AN174-7A – BOLT, CLOSE TOLERANCE

Specifications

Head Style: Hexagon
Surface Finish: 63.0 Microinches – Bearing Surface Of Head
Surface Finish: 63.0 Microinches – Grip
Surface Treatment: Cadmium And Chromate
Material: Steel
Fastener Length: 0.906″ Nom
Grip Diameter: 0.2487″ Min – 0.2492″ Max
Grip Length: 0.438″ Nom
Head Height: 0.140″ Min – 0.172″ Max
Tensile Strength Min: 125000 Pounds Per Square Inch
Width Between Flats: 0.428″ Min – 0.440″ Max

Part Number: AN174-7A
Unpunctuated: AN1747A

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
