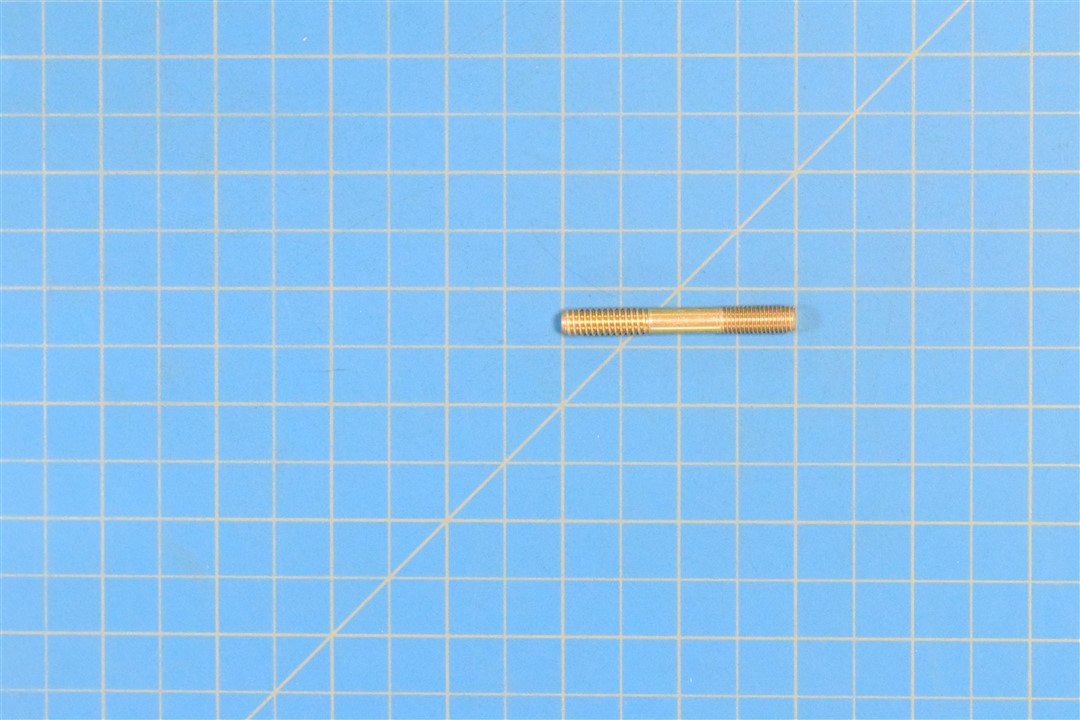

AN126055 – STUD, PLAIN

Description

AN126055 – STUD, PLAIN

Specifications

Surface Treatment: Cadmium
Material: Steel
Overall Length: 1.990″min– 2.010″max
Surface Finish: 32.0 Microinches – Nut
Surface Finish: 32.0 Microinches – Stud
Surface Finish: 63.0 Microinches – Shank
Nominal Thread Size: 0.250″ – Nut
Nominal Thread Size: 0.250″ – Stud
Thread Direction: Right-Hand – Nut
Thread Direction: Right-Hand – Stud
Thread Length: 0.562″min– Nut
Thread Length: 0.688″min– Stud
Thread Pitch Diameters: 0.2248 – 0.2263″ – Stud
Thread Quantity Per Inch: 20 – Stud
Thread Quantity Per Inch: 28 – Nut
Thread Series Designator: UNF – Nut
Thread Series Designator: UNS – Stud

Part Number: AN126055
Unpunctuated: AN126055

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.

AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.

Part Numbers, Alternates & Reference Info: We ship the exact part number shown in the product title/description when in stock. Any NSNs or alternate part numbers listed are for traceability/reference only. If a compatible alternate is the only option available, we will contact you before shipping to confirm acceptance. Specifications are compiled from multiple sources and provided for convenience; always verify fit, tolerances, and requirements in the official spec sheets and applicable repair manuals/IPCs before purchase. If specific documentation (e.g., 8130 or company CoC/trace) is required, please contact us before ordering. We do not provide usage/support guidance, please refer to the manuals. Ordering the wrong part can extend lead times and result in aircraft downtime.
