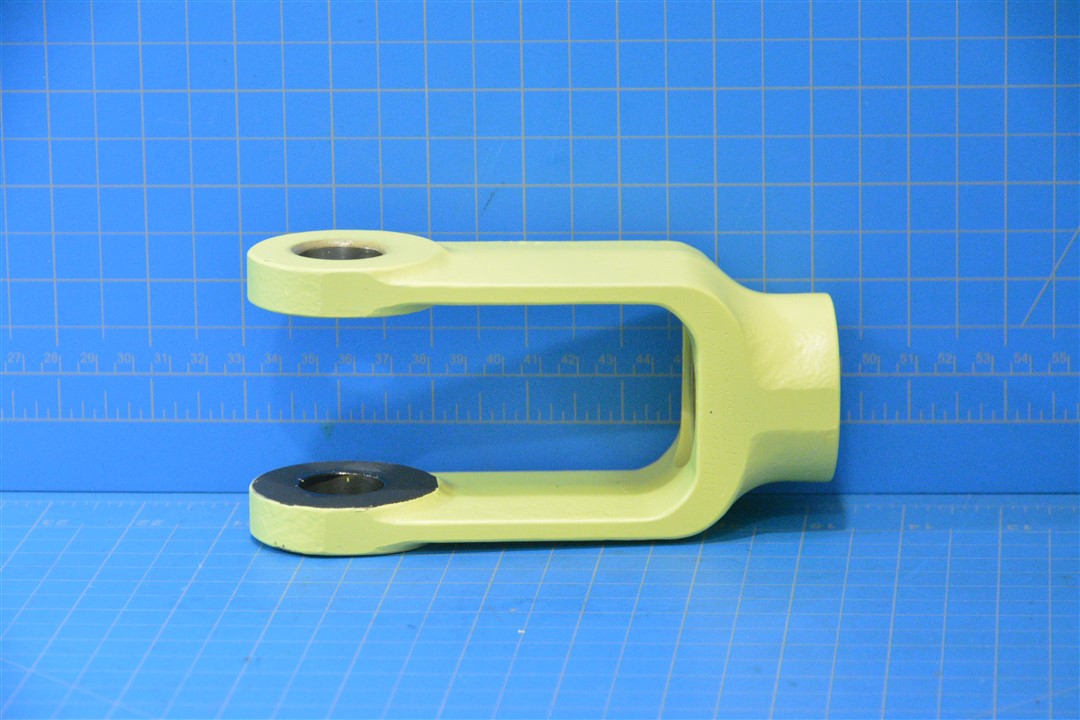

204-011-179-001 – CLEVIS, ROD END, AVIATION

Description

204-011-179-001 – CLEVIS, ROD END, AVIATION

Specifications

Style/Shape: Clevis
Surface Treatment: Cadmium
Material: Steel
Distance From Pivot Pinhole Center To Rod Connection End: 4.990″ Min – 5.010″ Max
End Radius: 0.970″ Min – 1.000″ Max
Fork Arm Thickness: 0.490Mm Nom And 0.510Cm Nom
Fork Depth: 3.490″ Min – 3.510″ Max
Fork Span Width: 1.950″ Min – 1.960″ Max
Hole Diameter: 0.8744″ Min – 0.8748″ Max
Overall Width: 2.950″ Min – 2.960″ Max
Shank Diameter: 1.940″ Min – 2.000″ Max
Thread Class: 3B Rod Connection
Thread Direction: Right-Hand Rod Connection
Thread Length: 1.500″ Nom Rod Connection
Thread Series Designator: Unf Rod Connection
Thread Size: 1.500″ Rod Connection
Manufacturer: Bell
Aircraft Model Compatibility: Bell 204

Part Number: 204-011-179-001
Unpunctuated: 204011179001

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
