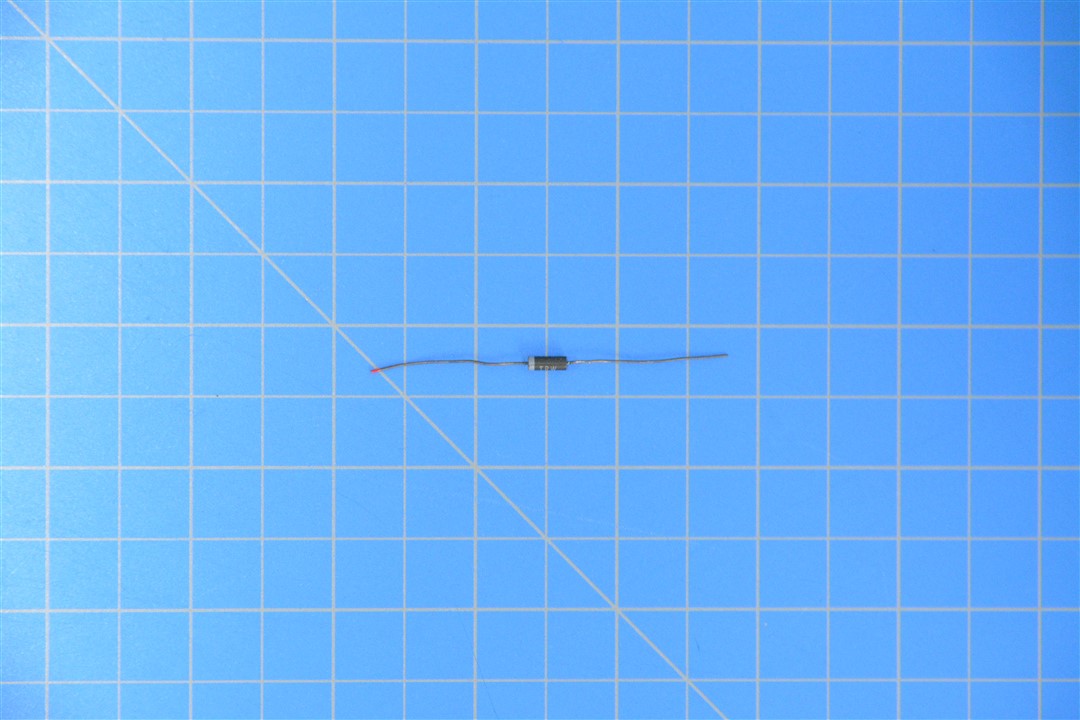

1N767 – SEMICONDUCTOR DEVICE, DIODE

Description

1N767 – SEMICONDUCTOR DEVICE, DIODE

Specifications

Design Feature: Hermetically Sealed Case
Mounting Method: Terminal
Terminal Type & Quantity: 2 Uninsulated Wire Lead
Material: Glass Inclosure
Material: Silicon Semiconductor
Overall Diameter: 0.085″ Min – 0.107″ Max
Overall Length: 0.230″ Min – 0.300″ Max
Terminal Length: 1.000″ Min
Current Rating: 5.00 Milliamperes Max Max Reverse Surge Current
Max Operating Temp Per Measurement Point: 150.0° Celsius Ambient Air
Power Rating: 250.0 Milliwatts Max Total Power Dissipation
Voltage Rating: 15.7 Max Nom Regulator Voltage

Part Number: 1N767
Unpunctuated: 1N767

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
